11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 10.24K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 10.24K Lithium Battery + 11KW Solar Roof Mount is a fully customizable power solution designed to simplify installation while delivering powerful 120/240V split-phase output. This modular system includes stackable inverters and heated lithium batteries, a full bifacial solar array, roof-mount hardware, and essential wiring—making it ideal for cabins, homes, garages, pole barns, or anyone seeking a dependable, expandable off-grid setup.

Specifications

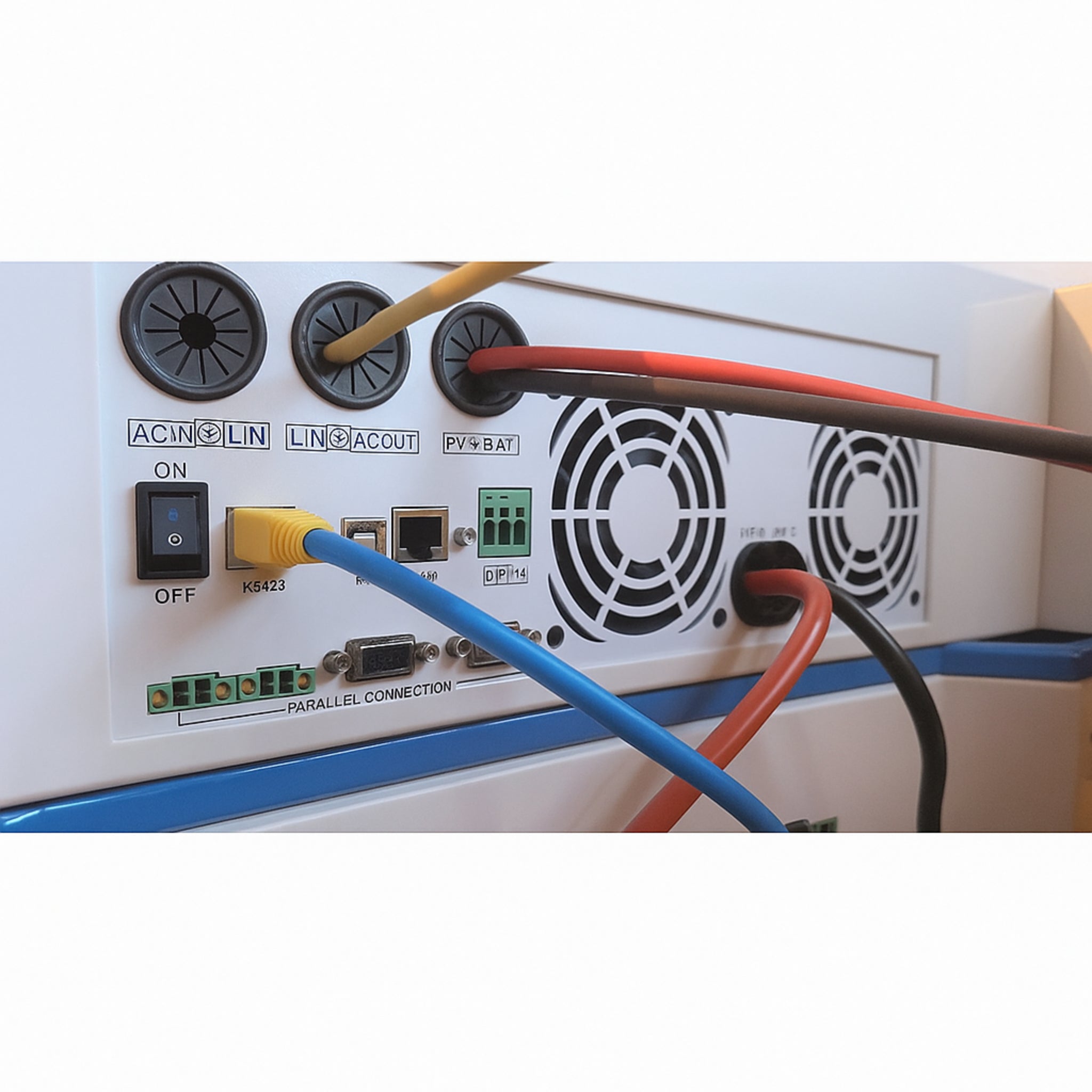

• Inverters: 2× OMO 5500W 120/240VAC pure sine wave stackable inverters (11,000W total output)

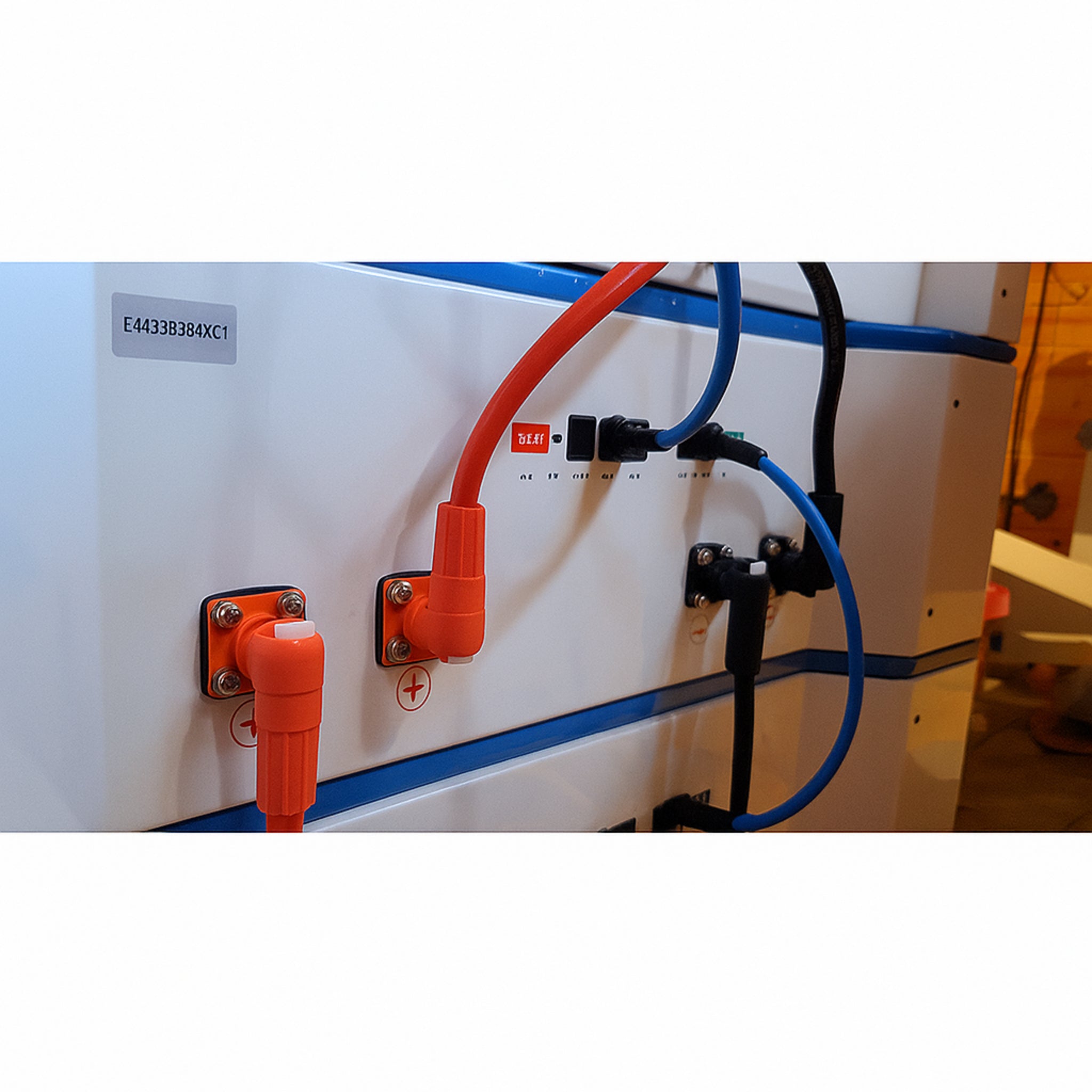

• Batteries: 2× 51.2V 5.12KW stackable heated lithium batteries with Bluetooth (expandable up to 6 batteries per inverter)

• Solar Array: 20× 550W bifacial mono panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting System: Complete IronRidge roof-mount rails, L-feet, splices, fasteners, and bolts

• Wiring Included: 500' PV direct-burial 10AWG wire, 100' 6AWG AC/generator cabling

• Tools & Accessories: OMO stack system wheeled base, MC4 crimp tool kit

Features

• Bifacial Double-Glass Panels: Up to 25% rear-side gain, improved weak-light performance, and 5400 PA snow / 2400 PA wind ratings

• Modular Expansion: Add batteries and panels as needed to scale with your energy demands

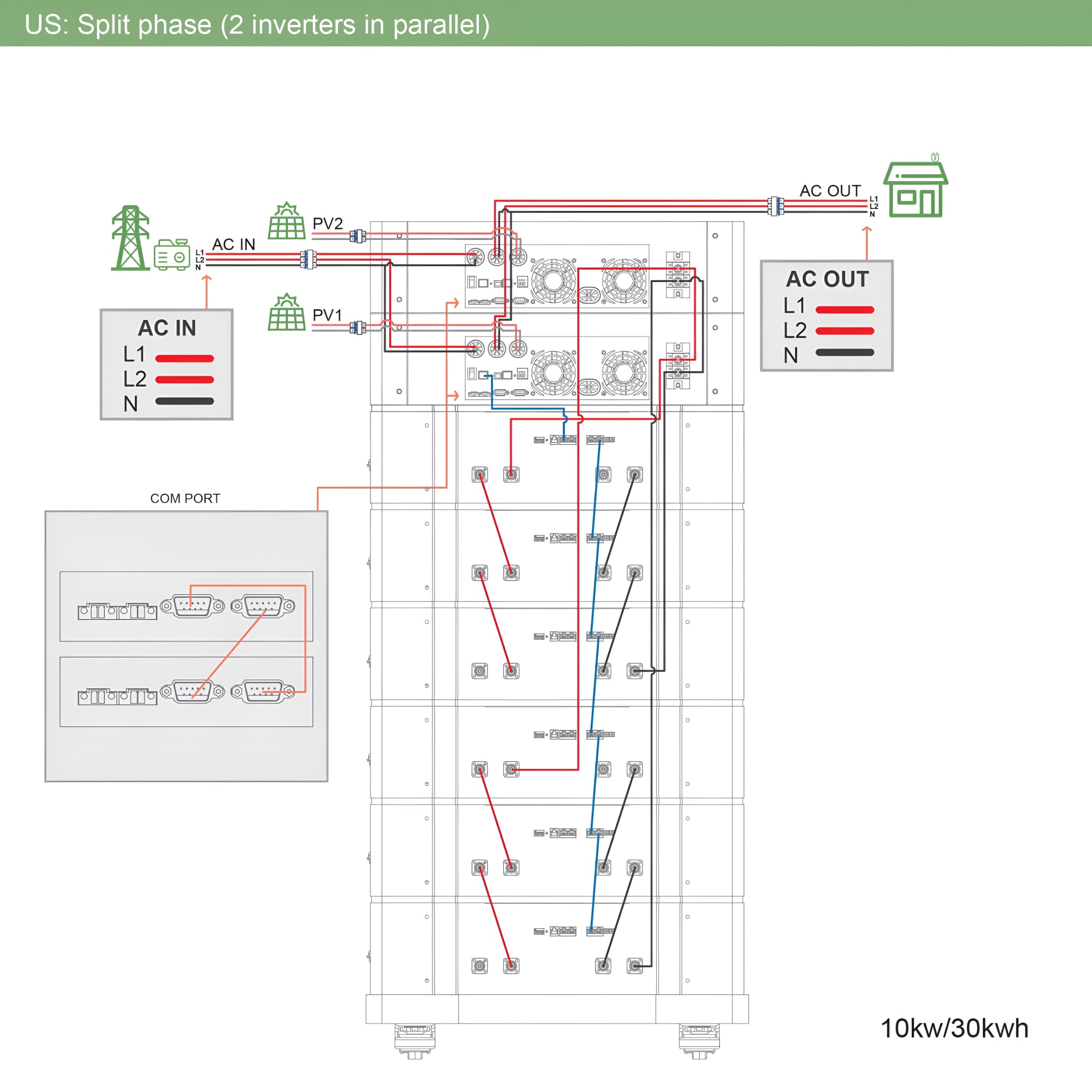

• 120/240V Split-Phase Output: Runs standard household appliances with ease

• Heated Lithium Batteries: Built-in heaters for cold-climate operation and Bluetooth monitoring

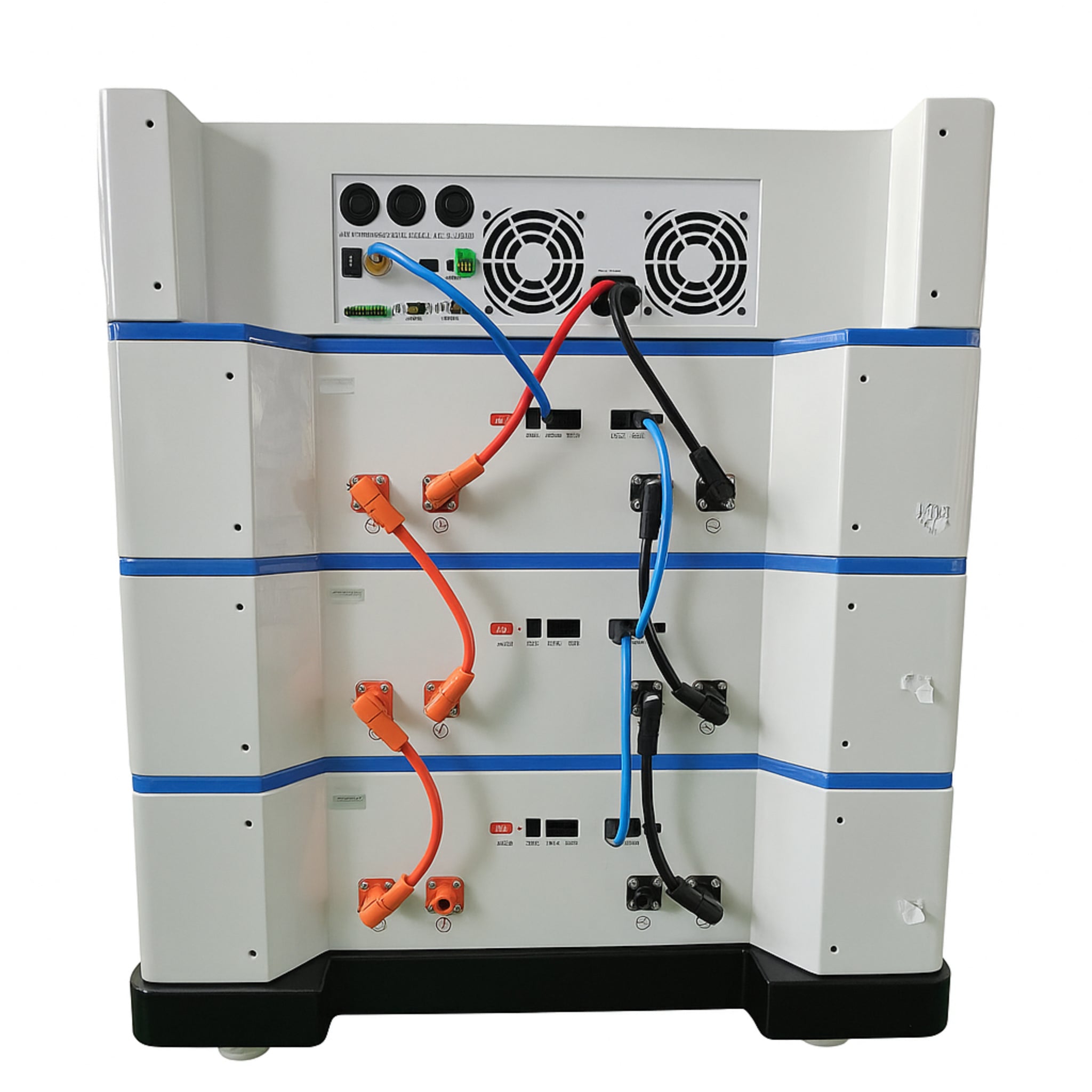

• All-in-One Convenience: Inverters, batteries, and wiring mount neatly on a rolling base for simple installation

• Expandable Design: Ideal for long-term builds, homesteads, and growing power systems

Maintenance

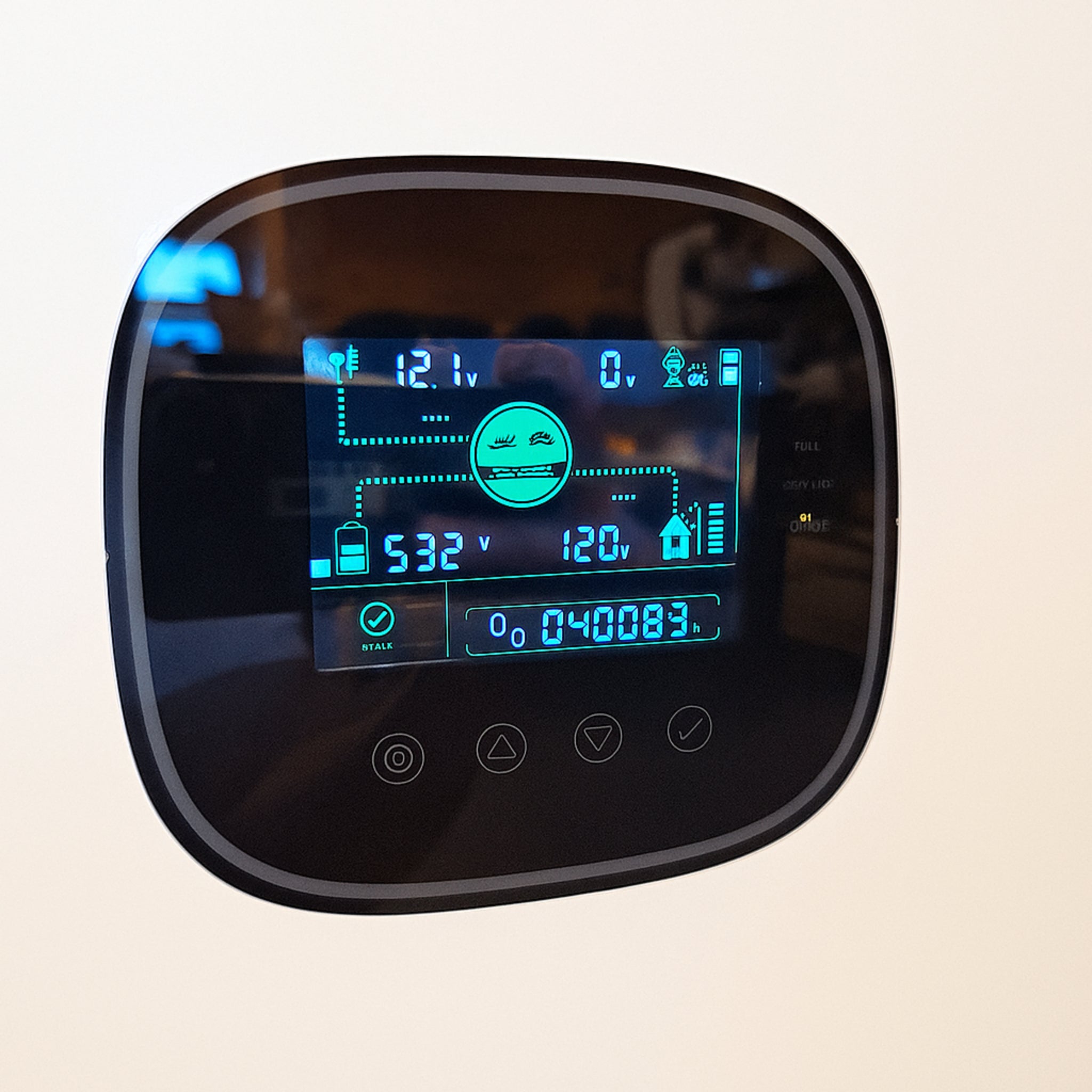

• Daily: Use Bluetooth or the inverter display to monitor battery levels and system performance

• Weekly: Inspect solar panels for debris and confirm proper battery ventilation

• Annually: Clean solar modules, check wiring tightness, and verify firmware updates

Warranty

• Solar Panels: 30-year power warranty

• Inverters & Batteries: See manufacturer warranty documentation for details

Inverter Specs

• MPPT Controller: Built-in 5500W PV input each

• Max PV Current: 22A each

• MPPT Voltage Range: 125–450V DC each

• AC Output: 5500W pure sine wave each

• Parallel Capability: Up to 6 units

• Input Compatibility: Grid/Generator 90–140VAC with 63A bypass

• Monitoring: WiFi + Bluetooth
