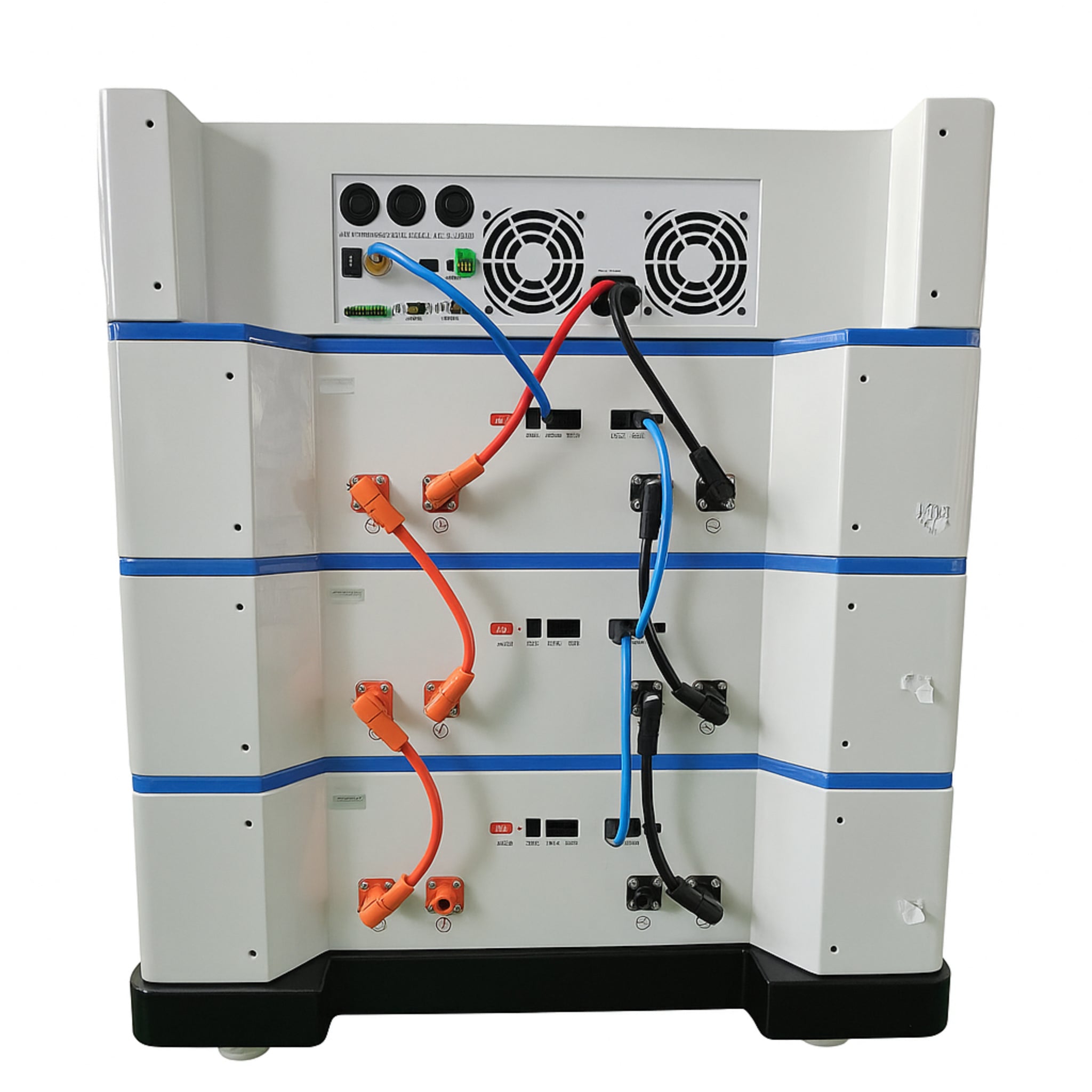

11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 15.36K Lithium Battery + 11KW Solar Roof Mount is a fully customizable package engineered to simplify installation while delivering reliable 120/240V split-phase power. This system includes dual stackable inverters, heated lithium batteries with Bluetooth, a bifacial solar array, high-quality IronRidge mounting hardware, and all essential wiring. Designed for cabins, homes, garages, and off-grid properties, this setup is expandable and adaptable to meet your long-term energy needs.

Specifications

• Inverters: 2× OMO 5500W 120/240VAC pure sine wave stackable inverters (11,000W total output)

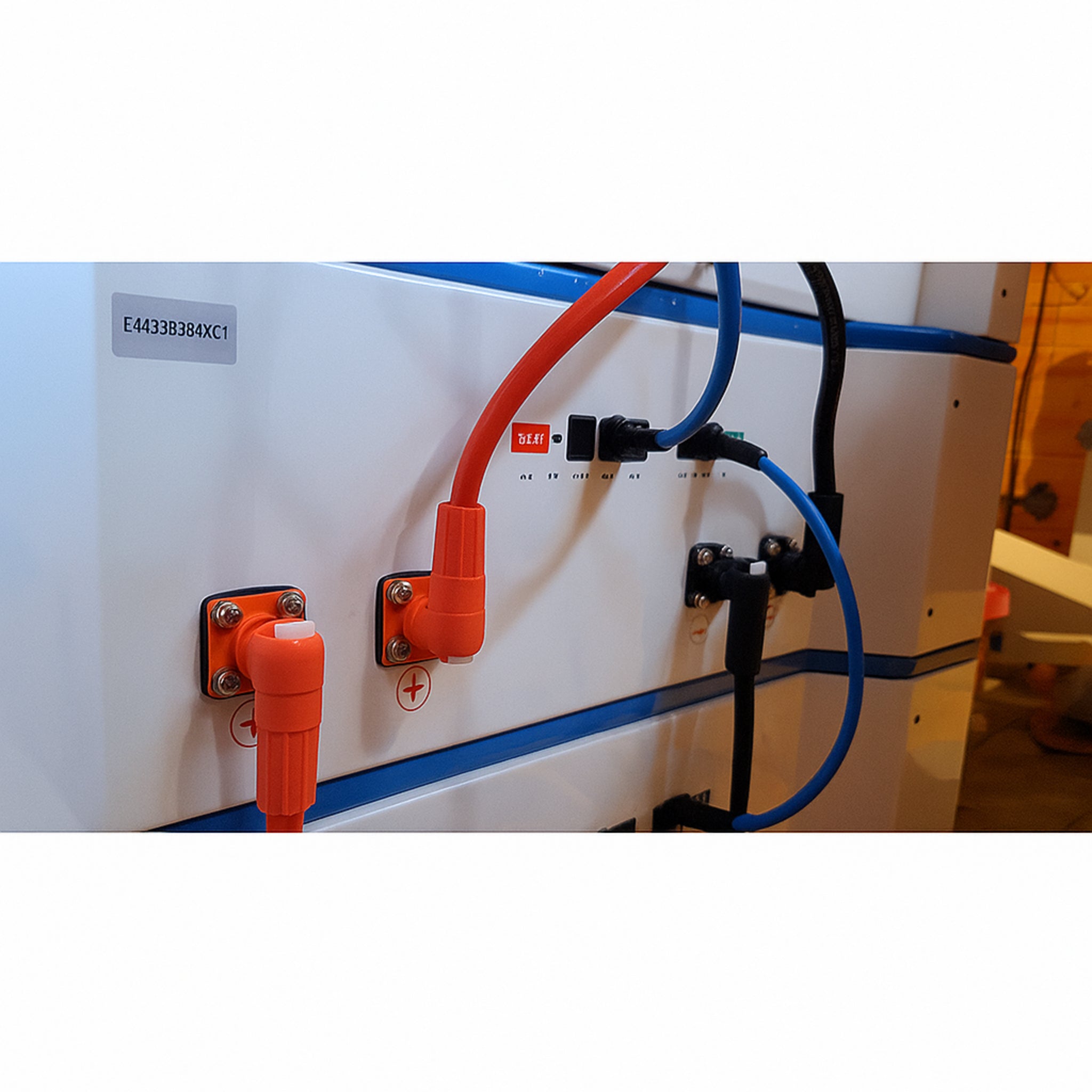

• Batteries: 3× 51.2V 5.12KW stackable heated lithium batteries with Bluetooth (expandable to 6 batteries per inverter)

• Solar Array: 20× 550W bifacial mono solar panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge roof-mount rails, L-feet, splices, fasteners, and bolts

• Tools & Accessories: OMO stack system wheeled base, MC4 crimper tool set

• Wiring: 500' 10AWG PV direct burial solar wire; 100' 6AWG AC output/input/generator cabling

Features

• Bifacial Double-Glass Modules: Up to 25% rear-side energy gain, with high performance in cloudy and low-light conditions

• High Durability: 5400 PA snow load and 2400 PA wind load ratings, with a 30-year power warranty

• Scalable System: Expandable for additional solar panels or battery capacity as your needs grow

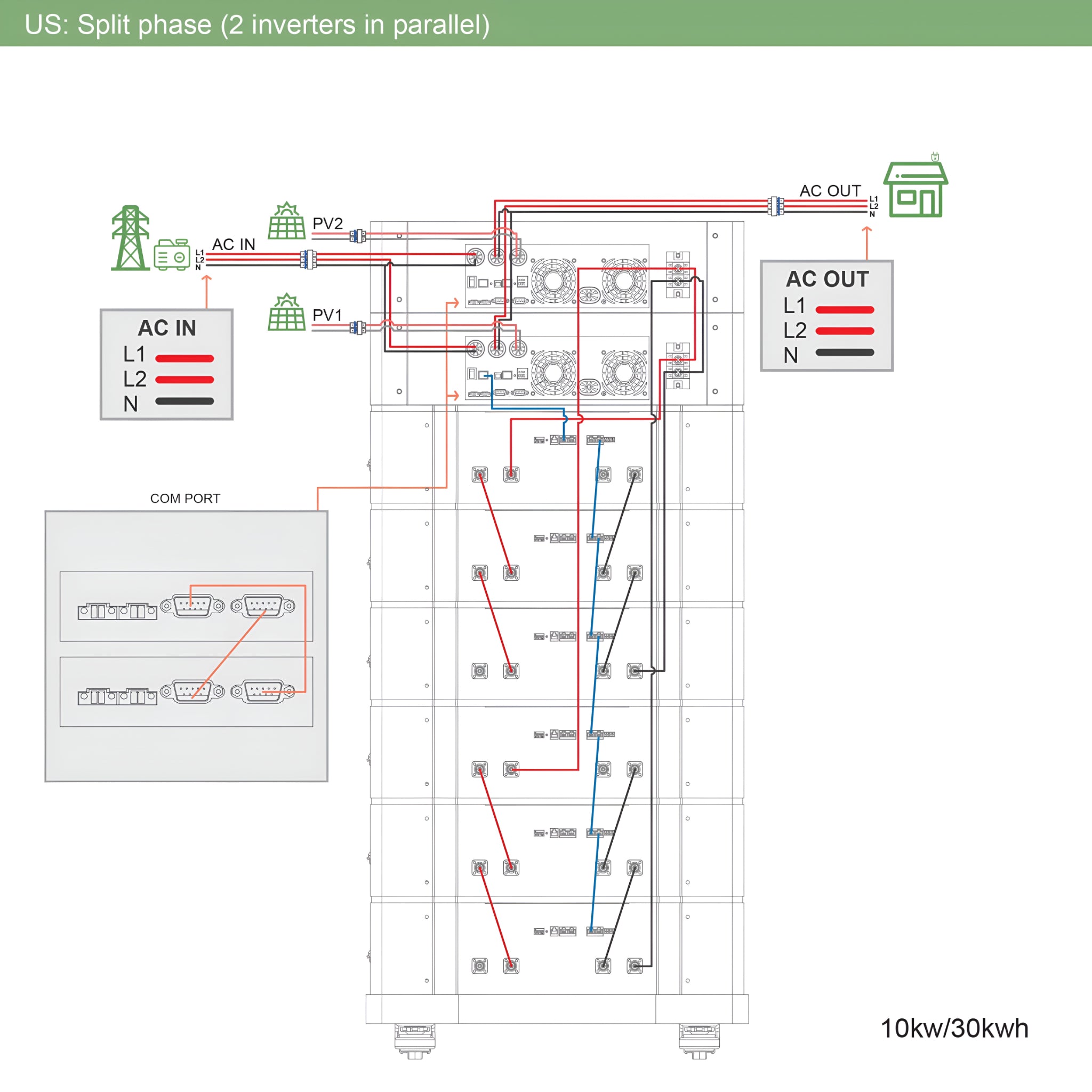

• Split-Phase 120/240V Output: Supports standard household appliances and tools

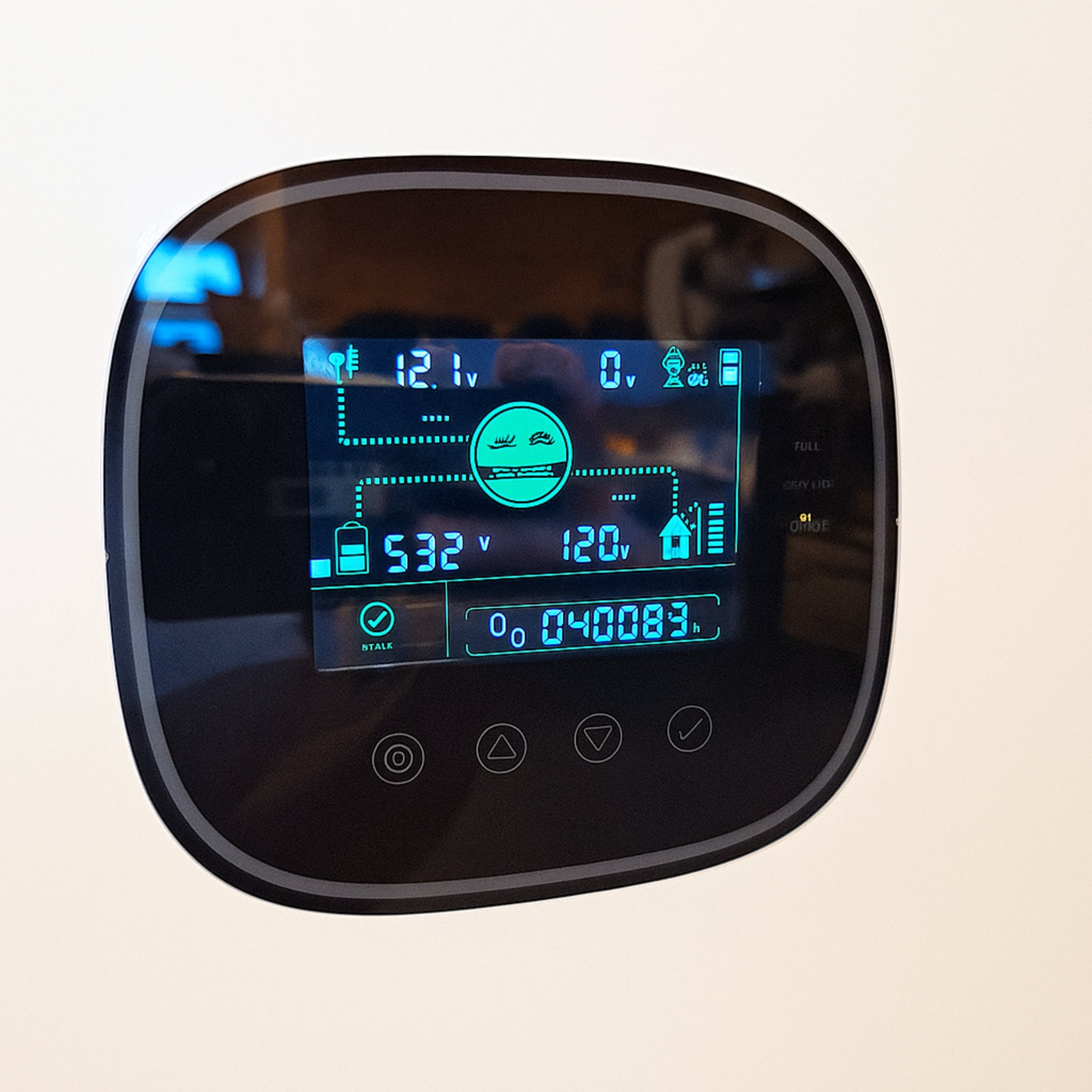

• Smart Monitoring: Lithium batteries include Bluetooth, and inverters support WiFi & Bluetooth monitoring

• User-Friendly Installation: Designed to simplify wiring and mounting for DIY installers

Maintenance

• Daily: Monitor battery levels and inverter output using Bluetooth/WiFi tools

• Weekly: Inspect solar panels for dust or debris and confirm airflow around batteries

• Annually: Perform full wiring checks, solar panel cleaning, and verify firmware updates

Warranty

• Solar Panels: 30-year performance warranty

• Inverters & Batteries: Warranty details provided in manufacturer documentation

Inverter Specs

• MPPT Controller: Built-in 5500W PV rated input per inverter

• Max PV Current: 22A per inverter

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave per unit

• Parallel Capable: Up to 6 units in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass current

• Monitoring: WiFi & Bluetooth
