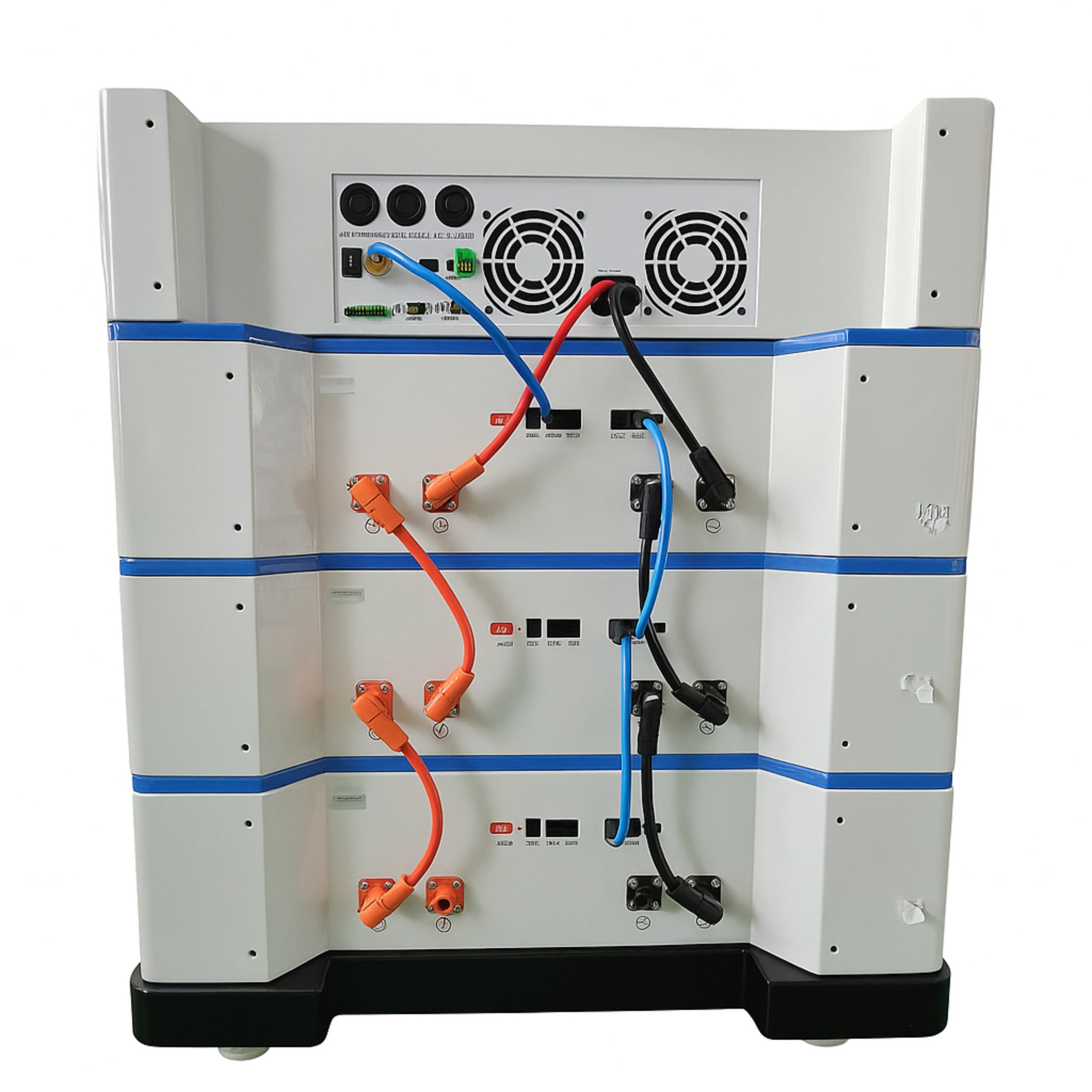

11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6K Lithium Battery + 11KW Solar Roof Mount

The 11KW OMO All-In-One Customizable Stacking Inverter/Battery System 120/240 11000W Total Inverter Output + 25.6K Lithium Battery + 11KW Solar Roof Mount is a fully customizable, high-performance solution built to support demanding off-grid power needs. Engineered for homes, cabins, shops, and remote installations, this system combines powerful split-phase inverters, advanced lithium storage, a premium bifacial solar array, and all mounting and wiring hardware required for a complete installation.

Specifications

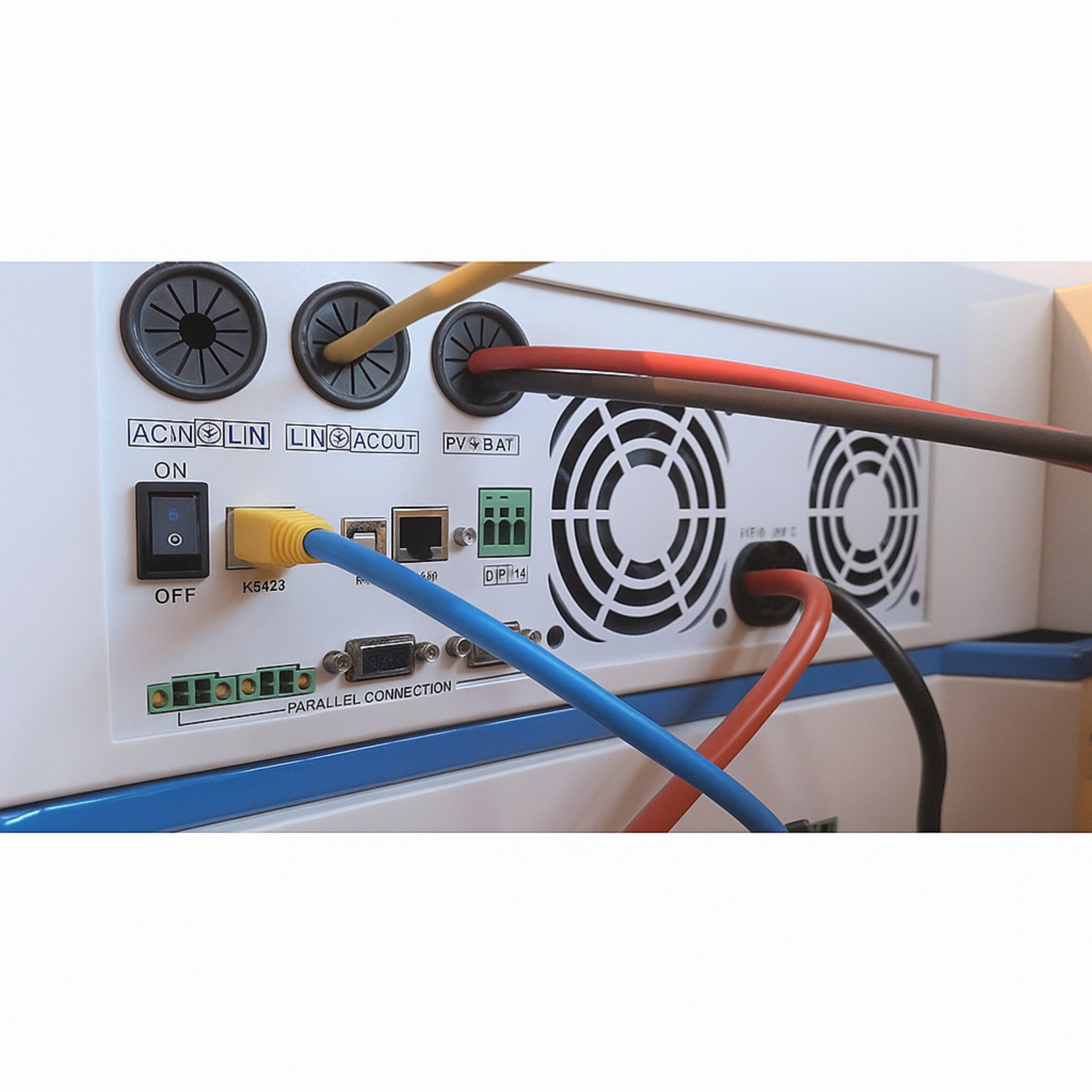

• Inverters: 2× OMO 5500W 120/240VAC 60Hz pure sine wave stackable inverters (11,000W total output)

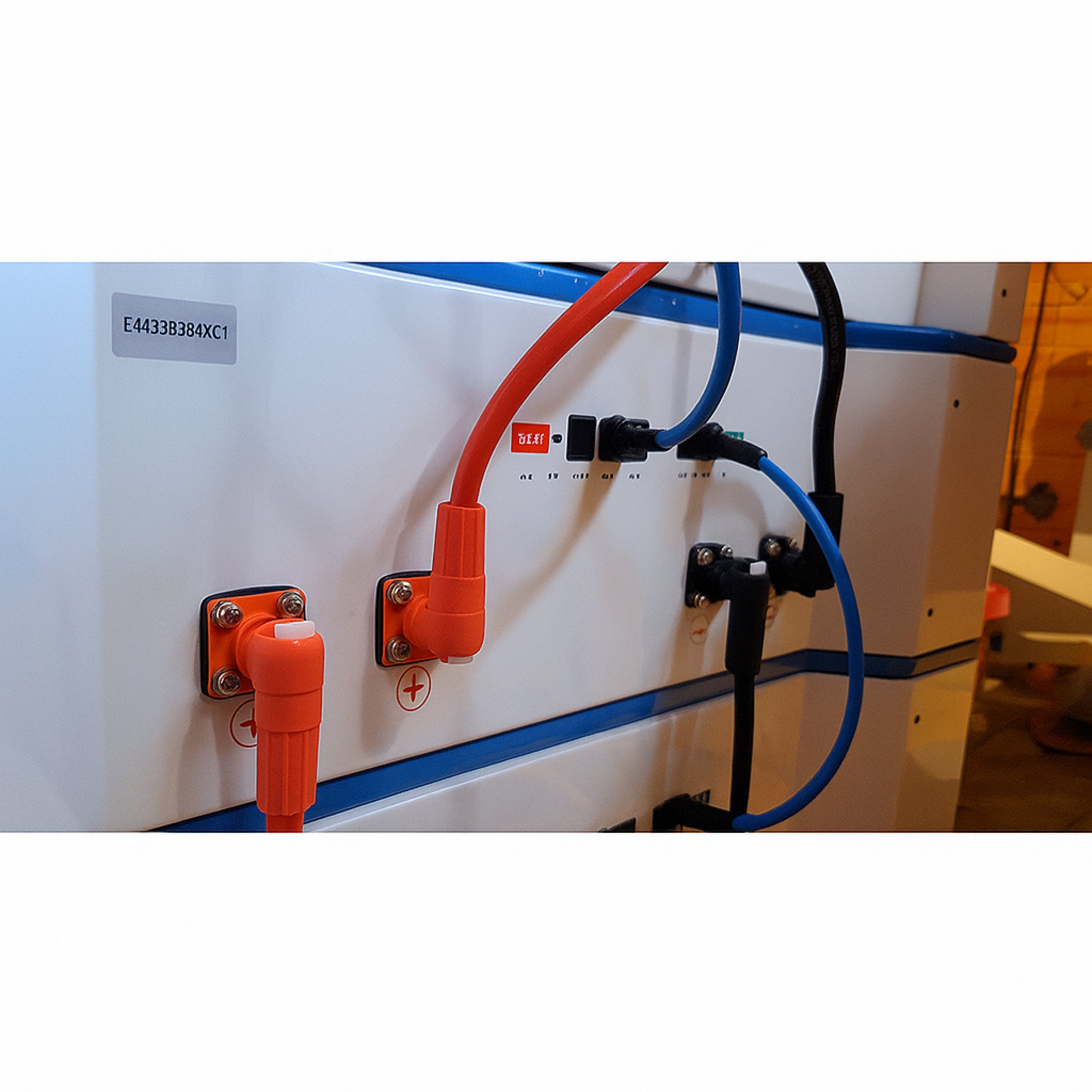

• Batteries: 5× 51.2V 5.12KW stackable heated lithium batteries with Bluetooth (expandable to 6 batteries per inverter)

• Solar Array: 20× 550W bifacial mono solar panels (11,000W array; expandable up to 10 panels per inverter)

• Mounting Hardware: Complete IronRidge roof-mount rails, L-feet, splices, fasteners & bolts

• Tools Included: MC4 crimper tool set

• Wiring: 500' 10AWG PV direct-burial wire & 100' 6AWG AC output/input/generator cabling

• Base System: OMO stack-system wheeled base

Features

• Bifacial Solar Technology: Additional rear-side harvesting (up to 25% more output) with double-glass durability

• High Weather Resistance: 5400 PA snow load & 2400 PA wind load for extreme environments

• Longevity: 30-year solar panel power warranty

• Flexible Expansion: Add batteries and solar panels as needed

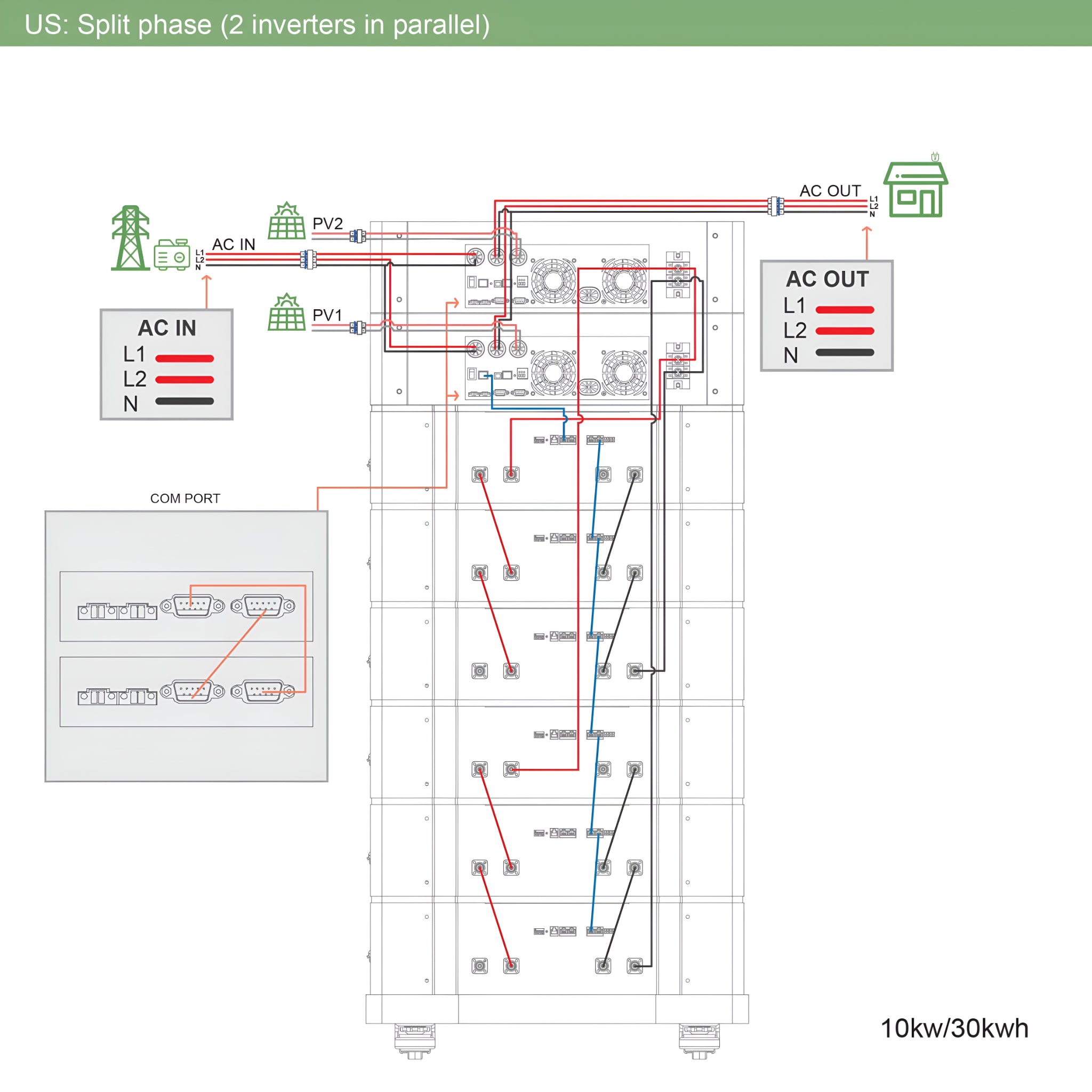

• Split-Phase Output: 120/240V capability supports most household appliances and tools

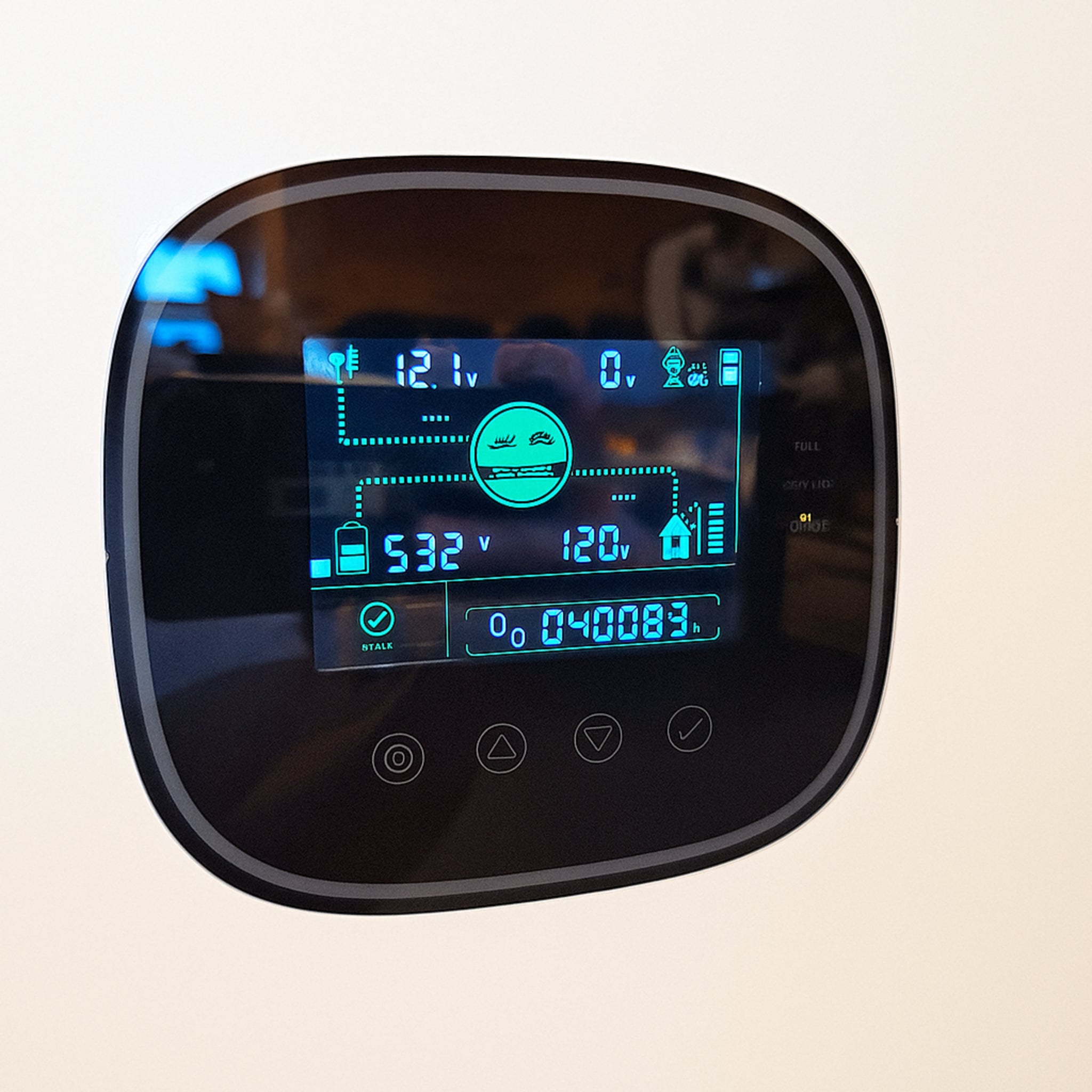

• Smart System Monitoring: WiFi & Bluetooth inverter monitoring + Bluetooth battery monitoring

Maintenance

• Daily: Monitor system performance via WiFi/Bluetooth app

• Weekly: Clear debris or dust from solar panels; check system airflow and ventilation

• Annually: Inspect wiring, connections, mounting hardware & clean all panels

Warranty

• Solar Panels: 30-year power performance warranty

• Inverters & Batteries: Manufacturer warranties available per component

Inverter Specs

• MPPT Solar Charge Controller: 5500W PV rated input per inverter

• Max Solar PV Current: 22A per inverter

• MPPT Voltage Range: 125–450V DC

• AC Output: 5500W pure sine wave each

• Parallel Support: Up to 6 inverters in parallel

• Grid/Generator Input: 90–140VAC with 63A bypass capability

• Monitoring: WiFi & Bluetooth
